Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel

Shenzhen Okystar Technology Co., Ltd.

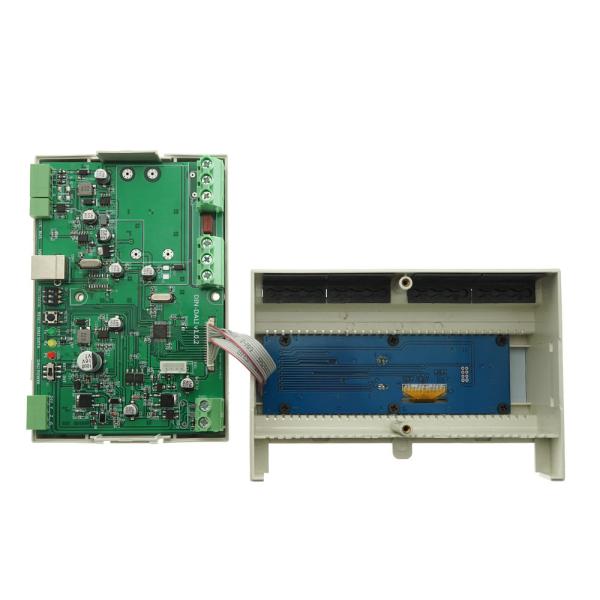

Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel

  • 1
  • 2

Brand Name : OKYSTAR

Model Number : DIN-DALI

Certification : CE, ROSH

Place of Origin : China

MOQ : 1

Price : $140-190/pcs

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 2000pcs/month

Delivery Time : 2-7 working days

Packaging Details : 1pcs/box, withing 14kg for DIN Rail DALI Lighting Control System

Product Name : DIN Rail DALI Controller / Dimmer/Module/Actuator

Supply Input : 24VDC

COM : RS-485

DC-NET Power : 2 Watts

Material : Polycarbonate

Color : Light Gray

Feature : Smart lighting Control

NET : 4-pin 3.81mm detachable terminal blocks, paralleled

Warranty : 1-2 years

Application : Home/building automation lighting control system

Minimum Closure Rating : 10mA (per module) at 24 Volts

DALI Interface : (1) 2-pin 7.62mm terminal blocks Each channel controls a single DALI loop (up to 64 ballasts);

COMPUTER : USB Type B female, USB 1.1 computer console port

Contact Now

Smart Lighting Control Systems Accessory DALI Lighting Control Module Controller




Smart Lighting Control System Solution

1. Cost and time advantages in planning, installation, commissioning and reprogramming
2. Improves comfort.
3. High flexibility, extense function at any time

4. DIN rail components and surface mounted devices

5. Input and output combinated various devices.
6. All loads in the room (lights, blinds, heating, etc.) can be controlled using a central device

Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel



DIN Rail DALI Master Controller Specifications

NET

(2) 4-pin 3.81mm detachable terminal blocks, paralleled

OVERRIDE

(1) 2-pin 3.81mm detachable terminal blocks.Sensing input for external low-voltage contact closure;
Activates override mode when a closure is present, forces each ballast into its defined “System Failure Level”

Minimum Closure Rating

10mA (per module) at 24 Volts

DALI Interface

(1) 2-pin 7.62mm terminal blocks
Each channel controls a single DALI loop (up to 64 ballasts);

COMPUTER

1) USB Type B female, USB 1.1 computer console port

TEST

(6) miniature pushbuttons for testing on/off and dim up/down for all attached ballasts in channel
DALI POWER
(1) 2-position switch, sets DALI power between internal (INT) and external (EXT);
When set to “INT” DALI uses power supplied by the DIN-DALI;
When set to “EXT” DALI uses power provided by external power supply (not included)
LCD Panel
(1) LCD Display Panel for Used for displaying various equipment information and operation status information

PWR

(1)Green LED, illuminates when DC power is a applied to the NET port

NET

(1)Yellow LED, Indicates communication with an external control processor



DIN Rail DALI Master Controller Application

Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel

> Support a DALI bus, most allow linking 64 DALI lighting equipment
> With USB and DC-NET(RS-485) communication interface
> Scan equipments, meet the requirement of automatic address assignment of DALI agreement and there are 3 ways to assign address
> All the parameters of the parameters table of DALI agreement can be read or set.
> Support Setting / reading by group;
> Integrated DALI power supply
> Support Scene values can be set/read.
> 8M wide DIN rail mounting
Override Input
An override input is provided to allow an external contact closure to momentarily override the control system program and force each ballast into its defined “System Failure Level.” States can be set and saved locally from the front panel, or remotely via software.




DIN Rail DALI Master Controller Installation

The DIN-DALI is designed to snap onto a standard DIN rail for installation in a wall mount enclosure. Wiring connections are made using screw terminals positioned along the top and bottom, clearly accessible from the front for easy installation and servicing. All setup controls and indicators are positioned on the center front panel. When the DIN-DALI is installed in an enclosure utilizing 45 mm cutouts, the front panel stays accessible while the connections are concealed.

Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel



DIN Rail DALI Master Controller Production Line
Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel


Company Profile

Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 100 skilled workers,5. technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export lighting control system including DALI, 0-10V, Leading / Trailing Edge Dimmer, Programmable Touch Panel and etc.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.

Smart Dali Lighting Control Module Polycarbonate Material LCD Display PanelSmart Dali Lighting Control Module Polycarbonate Material LCD Display Panel


Exhibition
Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel

DIN Rail DALI Master Controller Packing & Shipping

Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel

Smart Dali Lighting Control Module Polycarbonate Material LCD Display Panel


FAQ
1. What is intelligent lighting
control system?

A lighting control system is an intelligent network based lighting control solution that incorporates communication between various system inputs and outputs related to lighting control with the use of one or more central computing devices. Lighting control systems are widely used on both indoor and outdoor lighting of commercial, industrial, and residential spaces.

2. What is the advantage compare with the traditional lighting control?

Improve energy efficiency
Reduce maintenance cost
Easy operation and more convenient


3. What Okystar can supply for you?

Okystar can offer a whole solution of lighting control system for you, economic and customization, with industrial-grade design, product architecture in line with international electrical standards, using high-quality components, products are stable and reliable.
